Digital Showroom for LG Medical Display

21.3-inch 5MP IPS Diagnostic Monitor for Mammography - 21HQ613D

Diagnostic Monitor
For Professional Diagnosis

LG Diagnostic Monitors allows medical professionals to easily distinguish even delicate details.

Learn more
31HN713D 31-inch 12MP Diagnostic Monitor
360° view Leaflet Request demo
- 31-inch 12MP (4200x2800) IPS Display
- 1200cd/m², sRGB over 97% (Coverage)
- Multi-resolution Mode (12/6MP)
- Pathology Mode, Focus View Mode
- Lighting (Down/ Wall), 6 Hot Keys
Learn more
32HQ713D 31.5-inch 8MP IPS Black Diagnostic Monitor
360° view Leaflet Request demo
- 31.5-inch 8MP (3840x2160) IPS Black Display
- Multi-resolution Mode (8/6/4MP)
- 1,000 cd/m² Brightness (Typ.)
- Focus View Mode / Pathology Mode
- Internal Front Calibration Sensor
- Down Light / Wall Light
Learn more
32HL512D 31.5-inch 8MP Diagnostic Monitor
360° view Leaflet Request demo
- 31.5-inch 8MP (3840x2160) IPS Display
- 450cd/m², DCI-P3 98%(CIE1976)
- Multi-resolution Mode (8/6/4MP)
- Pathology Mode
- 4-Side Virtually Borderless Design
Learn more
21HQ613D 21.3-inch 5MP IPS Diagnostic Monitor for Mammography
360° view Leaflet Request demo
- 21.3-inch 5MP (2,048x2,560) IPS Display
- 1,100 cd/m² Brightness (Typ.)
- Internal Front Calibration Sensor
- Multi-Resolution Mode (5/3/2MP)
- Focus View Mode / Pathology Mode
- Daisy Chain
Learn more
21HQ513D 21.3-inch 3MP Diagnostic Monitor
360° view Leaflet Request demo
- 21.3-inch 3MP (2048x1536) IPS Display
- 1100cd/m² (Typ.)
- Auto Luminance Sensor, Presence Sensor
- Focus View Mode, Daisy Chain
- Tilt/ Pivot/ Swivel/ Height Adjustable Stand

Calibration Software

LCS Medical*

DICOM Calibration & Quality Assurance Software

* LCS Medical: LG Calibration Studio Medical

CLOSE

Here are LCS Medical compatible measurement devices

Model	Manufacturer	Calibration/ Conformance	Correlation	Acceptance test (QA test)	Remark
i1 Display Pro	Calibrite (X-rite)	Available	Available	Available	EOL
i1 Display Pro Plus	Calibrite (X-rite)	Available	Available	Available	EOL
ColorChecker Display Pro	Calibrite (X-rite)	Available	Available	Available	EOL
ColorChecker Display Plus	Calibrite (X-rite)	Available	Available	Available	EOL
Display Pro HL	Calibrite (X-rite)	Available	Available	Available	USB-C Connector
Display Plus HL	Calibrite (X-rite)	Available	Available	Available	USB-C Connector
Spyder X Elite	Datacolor	Available	Available	Available	Limited by 1,000cd/㎡
CD mon	Pehamed	N/A	Available	Available	Brightness Only
LX can	Iba Dosimetry	N/A	Available	Available	Brightness Only

24-inch 2MP Clinical Review Monitor - 24HR513C

Clinical Review Monitor
For Precise Clinical Review

LG Clinical Review Monitors provide stable brightness and wide viewing angles to deliver accurate medical images.

Learn more

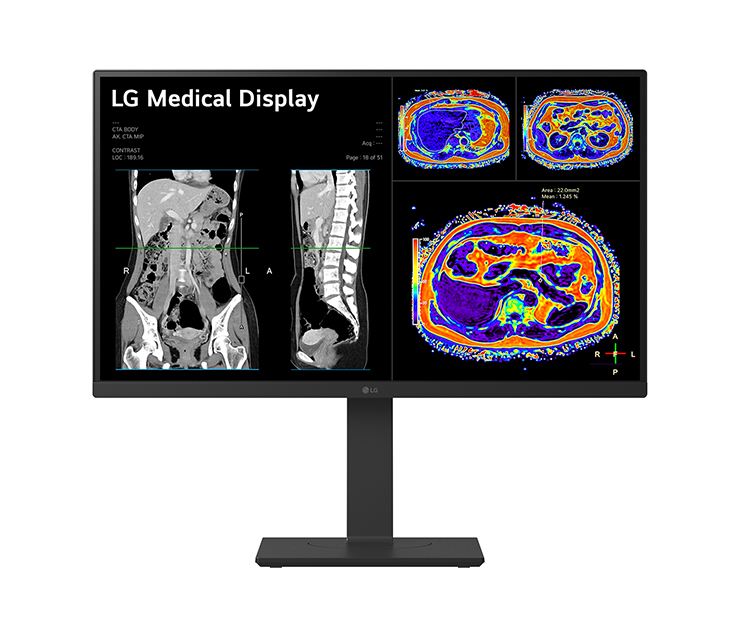

27HJ713C 27-inch 8MP Clinical Review Monitor
360° view Leaflet Request demo
- 27-inch 8MP (3840x2160) IPS Display
- 350cd/m² (Typ.), sRGB over 99% (Coverage)
- Brightness Stabilization
- 3-Side Virtually Borderless Design
- Tilt/ Pivot/ Swivel/ Height Adjustable Stand
Learn more
27HJ712C 27-inch 8MP Clinical Review Monitor
360° view Leaflet Request demo
- 27-inch 8MP (3840x2160) IPS Display
- 350cd/m² (Typ.), sRGB over 99% (Coverage)
- Brightness Stabilization
- 3-Side Virtually Borderless Design
- Tilt/ Pivot/ Height Adjustable Stand
Learn more

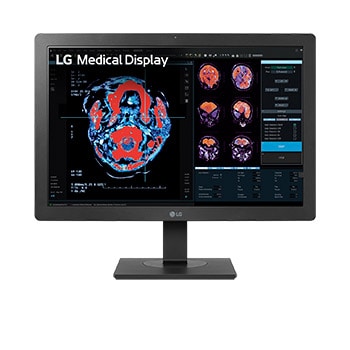

24HR513C 24-inch 2MP Clinical Review Monitor
360° view Leaflet Request demo
- 24-inch 2MP (1920x1200) IPS Display
- 600cd/m² Brightness (Typ.)
- Internal Front Calibration Sensor
- Focus View Mode / Pathology Mode
- Daisy Chain
- Bi-directional Auto Pivot

4K Surgical Monitor with Mini-LED – 27HQ710S

Surgical Monitor
Ideal Display for Detailed Surgery

Find your path to the best outcomes with outstanding image quality, usability, and credibility.

Learn more
55MH5K 55-inch 4K Surgical Monitor with 12G-SDI Support
360° view Leaflet Request demo
- 55-inch 4K (3840x2160) IPS Display
- 680cd/m2 (Typ.), DCI-P3 86% (CIE1976) (Typ.)
- 5ms Response Time (Faster-setting)
- HDR 10, HDR Effect, 12G-SDI Support
- Mirror & Rotation Mode, Up to 4PBP / PIP
Learn more
32HR734S 31.5-inch 4K Mini-LED surgical monitor
360° view Leaflet Request demo
- 31.5-inch 4K (3840x2160) with Mini-LED
- DCI-P3 98% (CIE1976)
- Protection glass (Optical bonding, Anti-reflection, Anti-fingerprint, Anti-glare)
- Clone screen
- Up to 4PBP, PIP / 12G-SDI support
- IP45 (Front), IP32 (Except for front), IK06
Learn more
32HL714S 31.5-inch 4K Surgical Monitor with 12G-SDI Support
360° view Leaflet Request demo
- 31.5-inch 4K (3840x2160) IPS Display
- 800cd/m² (Typ.), sRGB 115% (Area)
- 5ms Response Time (Faster-setting)
- HDR 10, HDR Effect, 12G-SDI Support
- Mirror & Rotation Mode, Up to 4PBP / PIP
Learn more

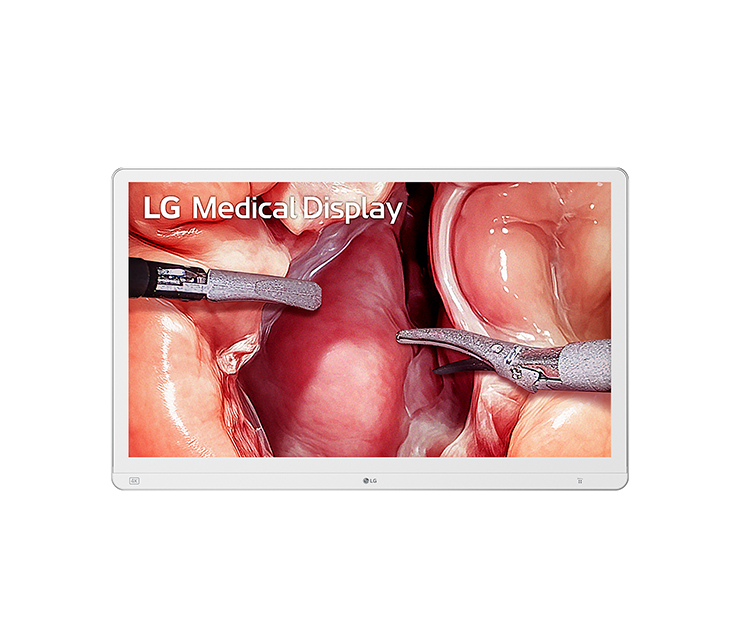

32HL710S 31.5-inch 4K Surgical Monitor
360° view Leaflet Request demo
- 31.5-inch 4K (3840x2160) IPS Display
- 800cd/m² (Typ.), sRGB 115% (Area)
- 5ms Response Time (Faster-setting)
- HDR 10, HDR Effect, 3G-SDI Support
- Mirror & Rotation Mode, Up to 4PBP / PIP
Learn more

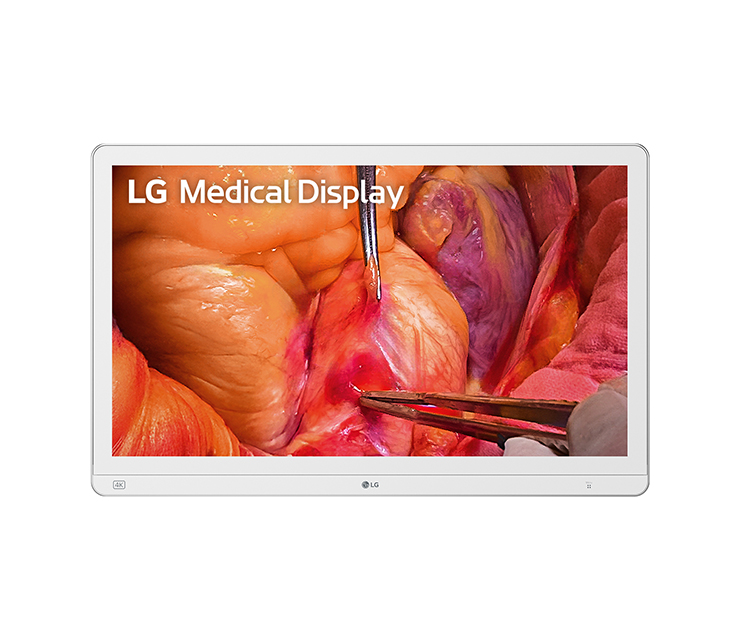

27HQ710S 27-inch 4K Mini-LED Surgical Monitor
360° view Leaflet Request demo
- 27-inch 4K (3840x2160) IPS Mini-LED Display
- 800cd/m² (Typ.), sRGB 139% (Area)
- 5ms Response Time (Faster-setting)
- Local Dimming, HDR 10, HDR Effect
- Mirror & Rotation Mode, Up to 4PBP / PIP
Learn more
27HK510S 27-inch Full HD Surgical Monitor
360° view Leaflet Request demo
- 27-inch Full HD (1920x1080) IPS Display
- 1000cd/m² (Typ.), sRGB 115% (Area)
- 5ms Response Time (Faster-setting)
- Failover Input Switch
- IP35 (Front) & IP32 (Except for Front)

LG Digital X-ray Detector with Oxide TFT - 14HQ901G / 17HQ901G

Digital X-ray Detector
More Details at Lower Dose
in Every X-ray Image

Get better diagnostic images at lower radiation dose to the patient.

Learn more
17HQ901G 17 x 17-inch Wireless/ Wired Digital X-ray Detector with Oxide TFT
360° view Leaflet Request demo
- Oxide-based Flat-panel Detector
- 3072x3072 Pixels, 140µm Pixel Pitch
- 16bit A/D conversion
- Image Acquisition within 1.5sec. (Wired), 2sec. (Wireless)
- IP68, Lightweight 3.6kg (7.9lbs)
Learn more
17HQ701G 17 x 17-inch Wireless/ Wired Digital X-ray Detector with a-Si TFT
360° view Leaflet Request demo
- 140㎛ pixel size
- 16bit A/D conversion
- IP68, Magnesium & Carbon-fiber Body
- Raw Image in 1.5 sec.(Wired) / 2.5 sec.(Wireless)
- Max. Uniform Load : 400kg / Max. Point Load : 200kg
Learn more
17HK700G 17 x 17-inch Wired Digital X-ray Detector with a-Si TFT
360° view Leaflet Request demo
- a-SI/ CsI-based Flat-panel Detector
- 3072x3072 Pixels, 140µm Pixel Pitch
- 16bit A/D conversion
- Image Acquisition within 2sec.
- IP53, Lightweight 3.4kg (7.5lbs)
Learn more
14HQ901G 14 x 17-inch Wireless/ Wired Digital X-ray Detector with Oxide TFT
360° view Leaflet Request demo
- Oxide-based Flat-panel Detector
- 3072x2560 Pixels, 140µm Pixel Pitch
- 16bit A/D conversion
- Image Acquisition within 1.5sec. (Wired), 2sec. (Wireless)
- IP68, Lightweight 3.0kg (6.6lbs)
Learn more
14HQ701G 14 x 17-inch Wireless/ Wired Digital X-ray Detector with a-Si TFT
360° view Leaflet Request demo
- a-SI/ CsI-based Flat-panel Detector
- 3072x2560 Pixels, 140µm Pixel Pitch
- 16bit A/D conversion
- Image Acquisition within 1.5sec. (Wired), 2sec. (Wireless)
- IP68, Lightweight 3.2kg (7.0lbs)
Learn more
10HQ701G 10 x 12-inch Wireless/ Wired Digital X-ray Detector with a-Si TFT
360° view Leaflet Request demo
- a-SI/ CsI-based Flat-panel Detector
- 2048x1792 Pixels, 140µm Pixel Pitch
- 16bit A/D conversion
- Image Acquisition within 1.5sec. (Wired), 2sec. (Wireless)
- IP68, Lightweight 1.8kg (4.0lbs)
